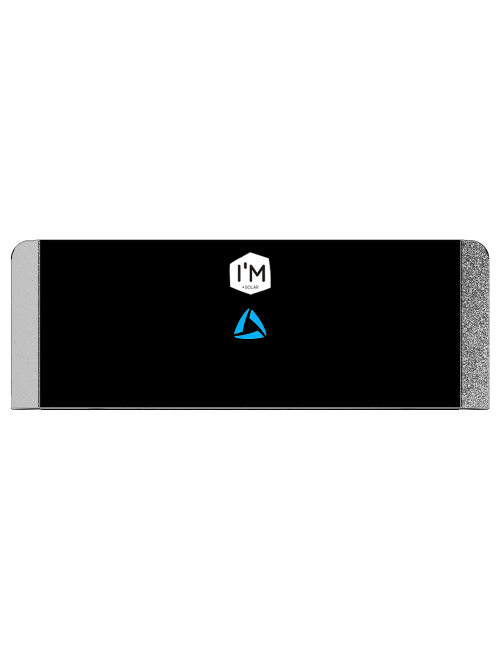

I'M SOLAR single-phase inverter Hybrid iStoragE 6000
- High voltage battery connection
- Wifi internet supervision
- Scalable installation
- Integrated Consumable Management
- Management of surplus injection
- Management of network outage
- Single-phase inverter
Connection with high voltage batteryThe I'M SOLAR Hybrid iStoragE 6000 inverter works with high voltage batteries. High voltage batteries allow high discharge power up to 6000W instantaneous. You can answer a high power electricity need via your solar batteries in the evening or in the morning, without using the electricity network.
Wifi Internet monitoringThe I'M SOLAR Hybrid Inverter inverter is equipped with Internet WIFI supervision at any time. The data is sent to I'M SOLAR Cloud. Thanks to the application on mobile, you monitor in real time the performance of your solar installation.
Scalable installationThe I'M SOLAR iStorage 6000 hybrid inverter is ideal for a first installation or for the evolution of an existing photovoltaic installation. You start the installation without batteries and add the I'M SOLAR iStorage S1 batteries per 5kWh module, and even increase the storage of these batteries according to your actual need. This inverter also works without solar panels. In this case, it is imperative to have batteries. This solution allows you to add a storage solution to your existing solar installation. You need 2 meters, one for the supervision of your first inverter (different brand) and second for supervision of your home consumption.
Integrated consumables managementThe I'M SOLAR inverter is ideal for all photovoltaic installations dedicated to self-consumption. Electrical consumables are managed remotely through an application. Either we define an automatic strategy according to the production of solar panels or manually. (Example: programming washing cycles every day at 14h if the production of solar panels exceeds 500W).
Management of surplus injectionSmart Inverter I'M SOLAR regulates the power of solar panels to provide only the real need. Thus any export production are no longer re-injected into the electricity grid free.
Off grid managementThis inverter works with or without a grid without any problems. This inverter is equipped with 2 outputs: a GRID output that works when there is a grid and an EPS output that works when there is no grid. This inverter switches to one or the other output automatically. The switchover is done in less than 10ms.
Single phase inverterThis I'M SOLAR inverter connects at home with the single-phase network but also on a phase of a house with three-phase connection. So you can make self-consumption with I'M SOLAR inverters.
|Input current max:||18.75A / 18.75A|
|Height x Length x Depth:||800 x 280 x 233mm|
|Max. input power:||9000W|
|Charge and discharge power:||6000W|
|Battery operating voltage:||360...500V|
|Internet connexion:||RS485 + Ethernet + USB + Wifi|
|Warranty product:||10 years|
