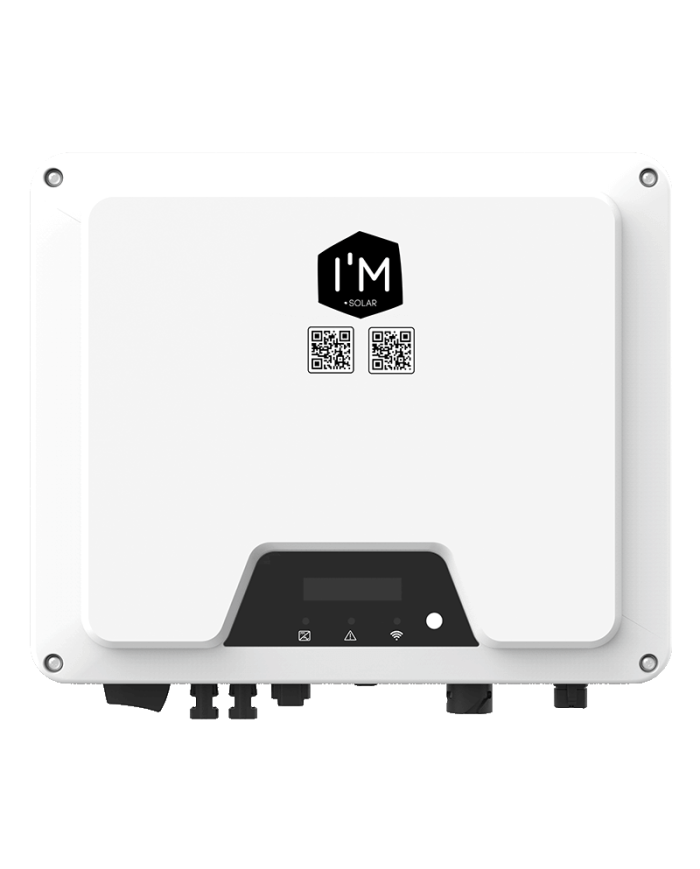

I'M SOLAR three-phase Hybrid inverter HHT-6K

Reference HHT-6K

High voltage battery connection
Wifi internet supervision
Scalable installation
Integrated Consumable Management
Management of surplus injection
Management of network outage
Three-phase inverter
Parallel operation with other I'M SOLAR inverters
Free updates (OTA: Over The Air)

€2,245.00

Tax included

Description

Connection with high voltage battery

The I'M SOLAR Hybrid HHT-6K inverter works with high voltage batteries. High voltage batteries allow high discharge power up to 6000W instantaneous. You can answer a high power electricity need via your solar batteries in the evening or in the morning, without using the electricity network.

Wifi Internet monitoring

The I'M SOLAR Hybrid Inverter inverter is equipped with Internet WIFI supervision at any time. The data is sent to I'M SOLAR Cloud. Thanks to the application on mobile, you monitor in real time the performance of your solar installation.

Scalable installation

The I'M SOLAR hybrid inverter HHT-6K is ideal for a first installation or for the evolution of an existing photovoltaic installation. You start the installation without batteries and add the PYLONTECH or BYD batteries per 5kWh module, and even increase the storage of these batteries according to your actual need.

Integrated consumables management

The I'M SOLAR inverter is ideal for all photovoltaic installations dedicated to self-consumption. Electrical consumables are managed remotely through an application. Either we define an automatic strategy according to the production of solar panels or manually. (Example: programming washing cycles every day at 14h if the production of solar panels exceeds 500W). In addition, with the I'M SOLAR application you can control your home with connected devices such as: connected socket, relay in a circuit breaker on your electrical panel, 3 in 1 sensor (presence sensor, temperature and brightness) and bulb connected.

Management of surplus injection

Smart Inverter I'M SOLAR regulates the power of solar panels to provide only the real need. Thus any export production are no longer re-injected into the electricity grid free.

Off grid management

This inverter works with or without a grid without any problems. This inverter is equipped with 2 outputs: a GRID output that works when there is a grid and an EPS output that works when there is no grid. This inverter switches to one or the other output automatically. The switchover is done in less than 10ms.

Three phase inverter

This I'M SOLAR inverter connects to the house with the three-phase grid.

Parallel operation with other I'M SOLAR inverters

This inverter can work in parallel with the same I'M SOLAR inverter to increase the power of your installation. Each inverter must have its own battery pack. It is not possible to mix battery packs.

Product Details

BrandI'M SOLAR

Reference HHT-6K

Data sheet

MPPT Range:	150...850V
Start voltage:	145V
Input current max:	16A / 16A
Height x Length x Depth:	425 x 351 x 200mm
Efficiency max:	98%
MPPT Tracker:	2
Injection:	Three phase
Power output:	6000W
Max. input power:	9000W
Battery Type:	Lithium
Battery operating voltage:	160...800V
Internet connexion:	RS485 + Ethernet + USB + Wifi
Warranty product:	10 years
Inverter type:	Hybrid inverter

Recycle your devices

Our mission

Offer a recycling solution for your solar-related products

We have set up a FREE solution to recover your old inverters, solar panels or solar batteries, whatever their brand, and we recycle them.

Do you want to replace your old solar panels? your inverter has broken down? or your solar battery no longer works? order your replacement I'M SOLAR product and we will take care of the recycling of your defective product FREE OF CHARGE.

How's it going?

I order my new product on I'M SOLAR

I receive my order

I replace and install my I'M SOLAR products

I send an email My Account > My Orders > Details > Add a message. We will receive your email in connection with your order.

Our logistics will contact you to organize the collection of your device. The carrier will collect the defective device free of charge.

We deliver to a recycling center to give your defective product a second life.

In order to continue in our renewable energy market, we have implemented this service for our customers. Using our natural resources and protecting the environment against pollution is essential at I'M SOLAR. This is why we offer our customers a 360° offer, from product manufacturing to recycling.

Learn more

Technical sheet

Installation manuals

Video
